ID ATP5000 Network HMI
MOONS' ATP5000 HMI adopts high-resolution, and high brightness LCD display screen, the display size is 16:9. Its appearance is exquisite, touch sensitive, and supports wireless network expansion. It is an open, networked, and fully configured industrial IIoT human-machine interface. The programming software has rich library resources, which can adapt to mainstream PLCs, and fully meet the customers needs. It can also support the customized needs of different applications.
● Hardcore configuration
● Optional IoT solutions
● Rich hardware interfaces
● Easy to use configuration software
● Optional IoT solutions
● Rich hardware interfaces
● Easy to use configuration software
Brand Name: MOONS'
Payment Methods
Buyer Protection:
Free Exchange
CPU 1GHz Cortex-A7 Processor , 4GB eMMC+256MB DDR3 storage , comparable to standard IPC .
 |  |  |  |  |  |
| High-Definition | High-Brightness | Full- Viewing Angle | Multiple Sizes | High-Performance CPU | Large Capacity Storage |
|---|

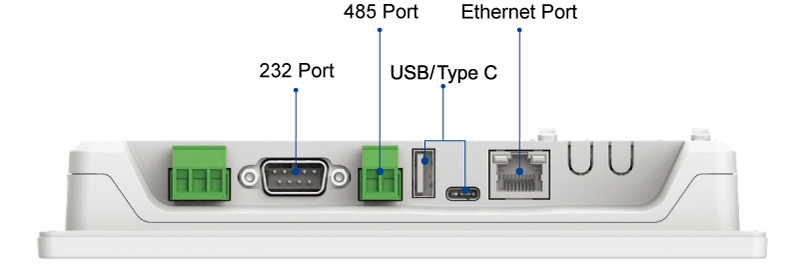

■ Rich Hardware Interfaces
• Serial Communication

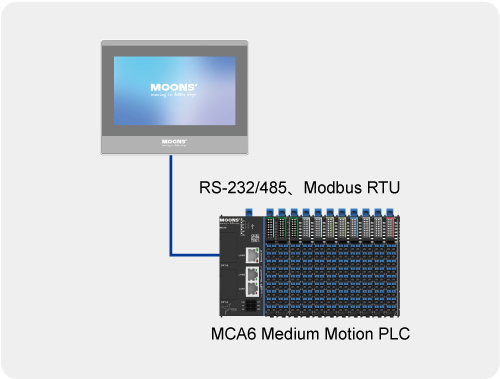

Connected to MOONS' MCA6 medium PLC through RS232/RS485 serial port, to achieve one master and one slave serial communication.

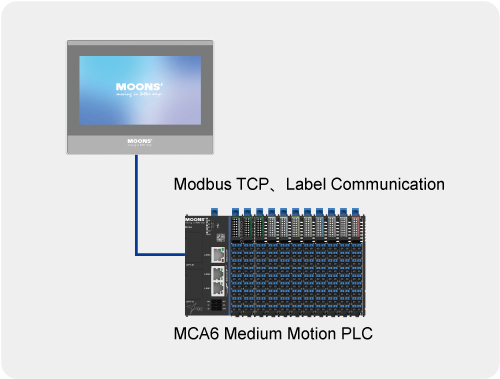

• Ethernet Communication
Connected to MOONS' MCA6 medium PLC through RJ45 interface, to achieve one master and one slave Ethernet communication.

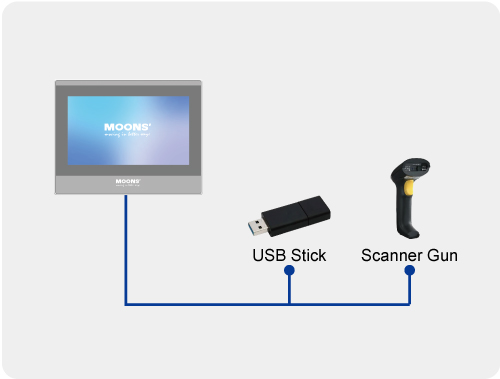

• USB Connection
USB port can connect hard disk, barcode scanner and other peripherals.

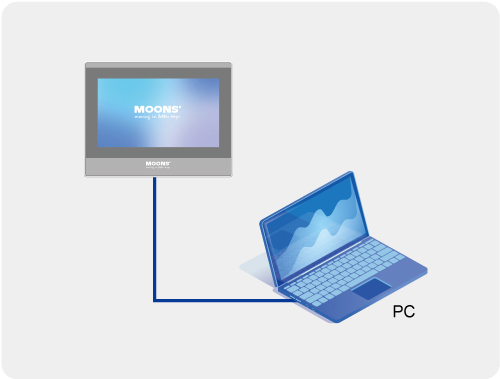

• Type-C Connection
Type-c interface downloading and debugging does not require power supply.
■ ATP Studio Edit Software Easy to Use
• Support for Mainstream PLC/ Drivers.
• Support for OPC UA and Modbus RTU/TCP Protocols.
• Support Graphical Programming.
• Strongly Compatible Recipe Function.
• Discrete Digitization of String Table.
• Strong Macro Usability.
• Support for OPC UA and Modbus RTU/TCP Protocols.
• Support Graphical Programming.
• Strongly Compatible Recipe Function.
• Discrete Digitization of String Table.
• Strong Macro Usability.

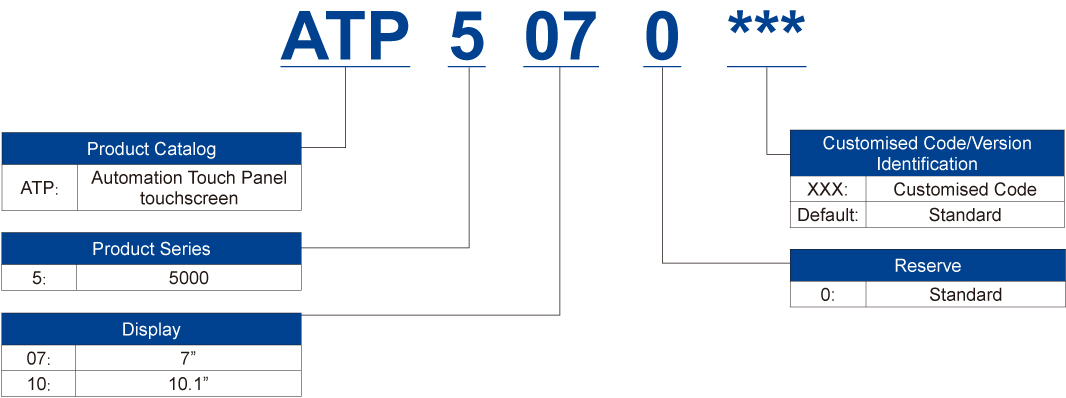

■ Model Number
■ ATP5000 Series HMI Selection Table
| Mode | Product Description | Dimension |
|---|---|---|
| ATP5070 | ATP5000 Series, Networked HMI, 7’ Industrial Resistive Screen, 1GHz, Dual Core Cortex-A7, 256M DDR3, 4GB eMMC | 204mm x 145mm x 36.3mm |
| ATP5100 | ATP5000 Series, Networked HMI, 10’ Industrial Resistive Screen, 1GHz, Dual Core Cortex-A7, 256M DDR3, 4GB eMMC | 273mm x 213mm x35mm |
■ Specifications
| Model | ATP5070 | ATP5100 |
|---|---|---|
| LCD Viewing Angles （T/B/L/R） | 85’/85’/85’/85’ | |
| Display | 7” 16:9 TFT LCD | 10.1” 16:9 TFT LCD |
| Resolution | 1024x600 | |
| Colors | 24-bit | |
| Brightness | 350 cd/m2 | 400 cd/m2 |
| Backlight | LED | |
| Backlight Life | 50,000 hours | |
| Touch Panel | 4-wire industrial resistive touch screen | |
| CPU | 1GHz , dual-core Cortex- A7 | |
| Storage | 256MB DDR3+4GB eMMC | |
| RTC | Built-in | |
| Serial Port | COM1:RS232/RS485/RS422 COM2:RS485 COM3:RS232 | |
| Ethernet | 1* 10M/100M self-adaptive | |
| USB Port | 1* Type - C OTG interface / 1* USB Type A interface | |
| Program download Method | USB Slave / USB flash drive / Ethernet por | |
| Rated Power | <10W | |
| Rated Voltage | DC24V (DC9V~28V) | |
| Power Protection | Lightning surge protection | |
| Power Interruption Tolerance | <5ms | |
| Operating Temperature | 0~50℃ | |
| Storage Temperature | -20~60℃ | |
| UV Resistance | Operating in high UV environment is prohibited (e.g., in direct sunlight) | |
| Ambient humidity | 10~90%RH ( non-condensing ) | |
| Shock Resistance | 10~25Hz ( X , Y , Z directions 2G/30 minutes ) | |
| Cooling Method | Natural air cooling | |
| Protection Level | Front: IP65 (with flush panel cabinet installation), Rear: IP20 | |
| CE&RoHS | Comply with EN61000-6-2:2005, EN61000-6-4:2007 Standard RoHS compliant , lightning surge ±1KV , group pulse ±2KV ; electrostatic contact 4KV , air discharge 8KV | |
| Enclosure Material | Engineering plastics | |
| Cutout Dimensions | 190mmx136mm | 260mmx202mm |
| Dimensions | 204mmx145mmx36.6mm | 273mmx213mmx36mm |
| Weight | About 476g | About 920g |

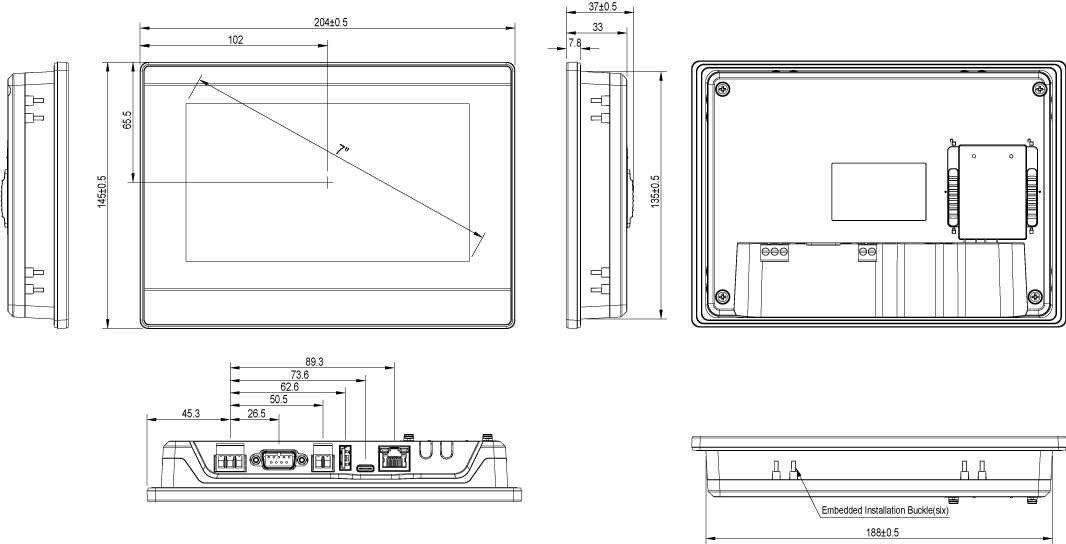

■ ATP5070 (Unit:mm)

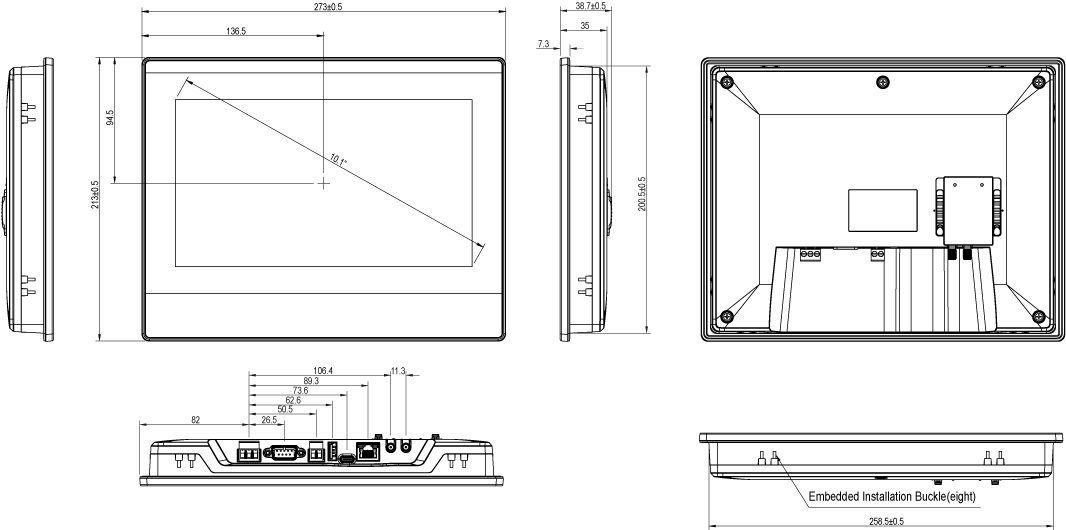

■ ATP5100 (Unit:mm)
2D Drawings
| Title | Type | Size（KB） | Download |
|---|---|---|---|
| ATP5070 2D.pdf | 837 | ||
| ATP5100 2D.pdf | 1211 |
Specifications
| Title | Type | Size（KB） | Download |
|---|---|---|---|
| ATP5070 Specifications_EN20241129.pdf | 1785 | ||
| ATP5100 Specifications_EN20241129.pdf | 1822 |
Catalog
| Title | Type | Size（KB） | Download |
|---|---|---|---|
| ATP5000 Series HMI Family Brochure_ Shortened Version_EN20241216L.pdf | 4997 |
Software
| Title | Type | Size（KB） | Download |
|---|---|---|---|
| ATP download link.txt | TXT | 0 |
